Why Retaining Wall Materials Matter in Garden Design

04/02/2026 - Garden Design

A retaining wall can be subtle and architectural or bold and sculptural. The materials you choose influence:

- The overall aesthetic of the garden
- How the wall weathers and matures over time
- Construction methods and build efficiency
- The balance between structural integrity and visual appeal

Thoughtfully selected materials allow retaining walls to become focal points rather than purely functional necessities.

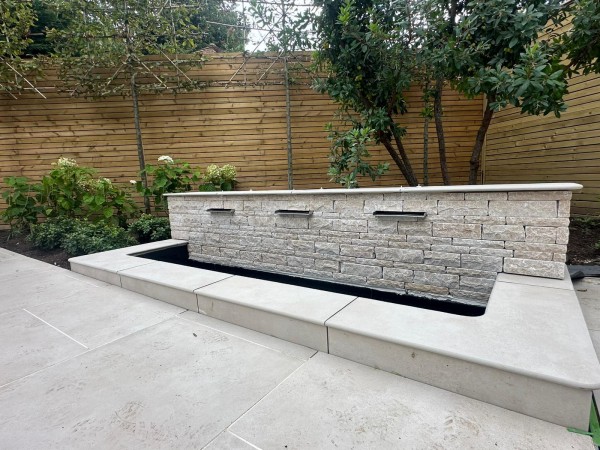

Tumbled Limestone Walling: Timeless Structure with Natural Warmth

Tumbled limestone walling remains a favourite for designers looking to introduce softness and heritage character into their landscapes.

Key design advantages

- Aged, natural finish that instantly settles into both rural and contemporary settings
- Warm limestone tones that complement planting schemes and natural paving
- Versatility in construction, from dry stone-style walls to fully mortared retaining structures

Ideal applications

- Garden terracing on sloping sites
- Raised beds and integrated seating walls
- Water features and outdoor kitchen cladding

For landscapers, tumbled limestone offers reliable sizing and buildability while still delivering an authentic, handcrafted appearance.

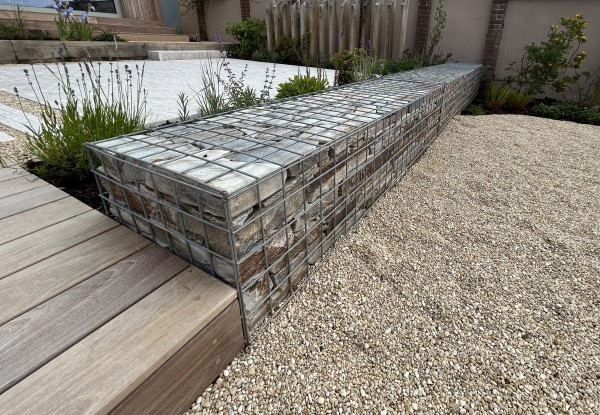

Gabion Baskets Filled with Paddlestones: Contemporary and Architectural

Gabion baskets provide a bold yet practical solution for modern retaining wall design. When filled with smooth paddlestones, the result is a more refined and design-conscious aesthetic.

Why designers specify gabions

- Textural contrast between steel mesh and rounded stone
- High structural performance, particularly for taller retaining walls
- Flexible design potential, allowing variation in height, length, and stone colour

Best suited for

- Contemporary and urban gardens
- Commercial and public realm landscapes
- Boundary walls that double as architectural features

Gabion retaining walls work especially well alongside concrete paving, timber detailing, and ornamental planting.

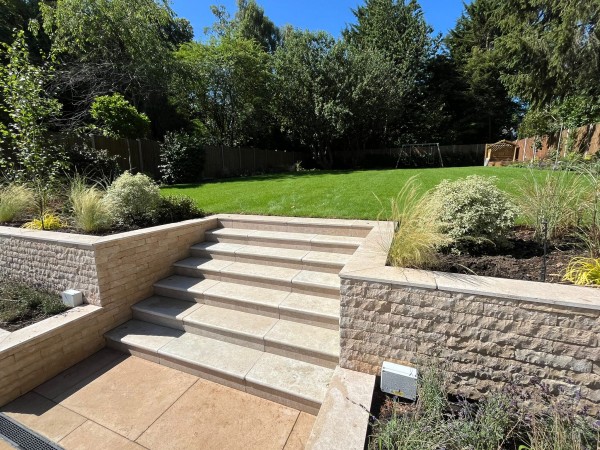

Retaining Walls Clad with Split Faced Limestone Cladding: Refined and Contemporary

For designers seeking a crisp, modern finish with the beauty of natural stone, retaining walls clad in split faced limestone cladding offer an elegant solution.

Design benefits

- Strong linear texture created by the split face finish, adding depth and shadow
- Natural stone character with a more contemporary edge than traditional walling
- Cladding flexibility, allowing stone to be applied to reinforced concrete or block-built retaining structures

Ideal design uses

- Clean-lined contemporary gardens
- Courtyard spaces and architectural landscapes
- Retaining walls integrated with steps, lighting, or water features

Split faced limestone cladding is particularly effective where a high-end, architectural aesthetic is required without the need for full-depth stone walling.

Combining Materials for Bespoke Retaining Wall Designs

Some of the most striking garden schemes using our materials combine multiple retaining wall materials to create contrast and hierarchy. Consider:

- Structural retaining walls clad in split-faced limestone, partnered with render and softened with planting
- Backed off paddlestones to clad sweeping retaining walls in big spaces
- Gabions used structurally, paired with limestone cladding in focal areas

This layered approach allows designers to balance cost, construction practicality, and visual impact - while delivering truly bespoke landscapes.

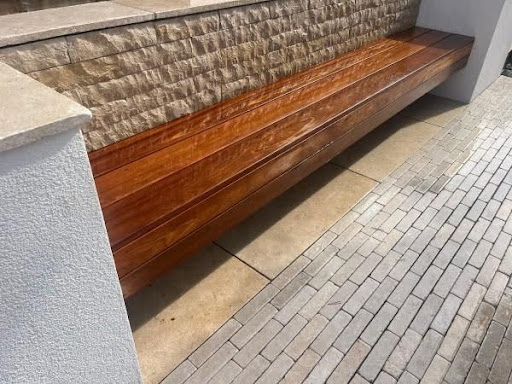

Split-faced sawn limestone cladding, render and copings surrounding a bench.

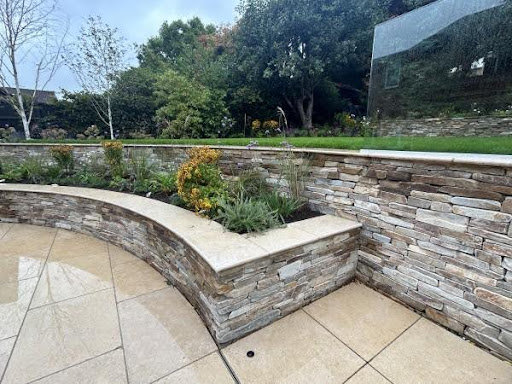

Backed off paddlestones topped with bespoke (made to measure) coping stones.

Applying Backed-Off Paddlestones to Concrete Block Retaining Walls

Backed-off paddlestones should always be installed as a facing material onto a structurally engineered blockwork retaining wall.

Key preparation

- Blockwork must be reinforced, plumb, and fully cured
- Retaining wall drainage must be installed behind the wall (free-draining backfill and land drain)
- Apply a waterproofing or tanking membrane to protect the structure

Fixing method

- Use a high-performance, flexible exterior adhesive suitable for natural stone
- Apply adhesive to both wall and stone backing to ensure full contact
- Install panels from the base upwards, staggering joints to avoid repetition
- For walls over 600mm high, include mechanical restraint such as starter rails or stainless fixings

Finishing

- Keep joints tight and lightly pointed to retain the rounded stone character
- Clean excess mortar immediately to avoid staining

This approach delivers a refined, natural stone finish while allowing the retaining structure itself to be built efficiently in blockwork.

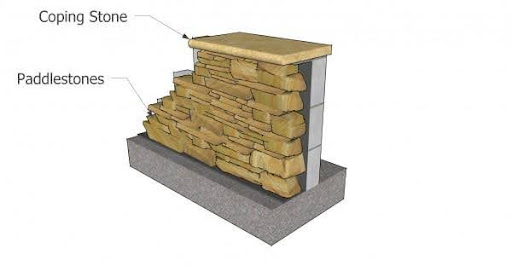

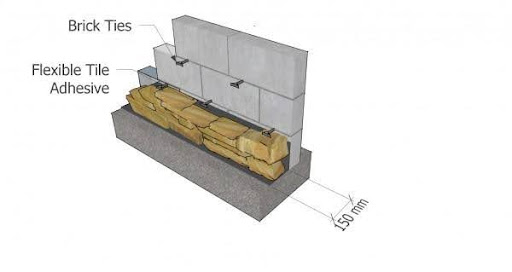

Brick tiles retaining wall Coping stone and paddlestone retaining wall

Using Backed-Off Paddlestones in Gabion Baskets

Backed-off paddlestones are also effective within gabion baskets where a neater, more consistent stone face is required.

Design benefits

- Creates a uniform, controlled appearance compared to loose infill
- Reduces voids and stone movement
- Allows designers to specify consistent stone size and colour

Installation approach

- Position backed-off paddlestones against the front face of the basket
- Secure panels to the gabion mesh using stainless steel ties or clips
- Fill the rear of the basket with suitable structural stone
- Compact fill carefully to prevent movement and bulging

This method combines the structural strength of gabions with the softer, more tactile look of paddlestones.

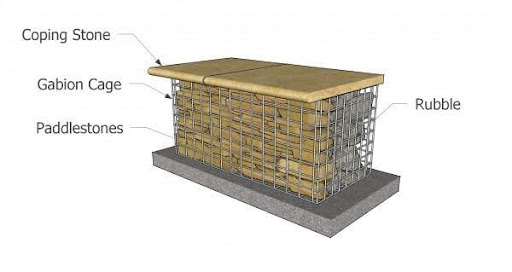

Coping stone, gabions and paddlestones

Retaining Wall Inspiration for Designers and Landscapers

When designing retaining walls, think beyond engineering. Ask how the wall will:

- Age alongside planting and surrounding materials
- Feel both visually and physically within the space
- Enhance the overall narrative of the garden design

With materials such as tumbled limestone walling, paddlestone-filled gabion baskets, split faced limestone cladding, and backed off paddlestones from Arbour Landscape Solutions, garden designers and landscapers can transform changes in garden levels into standout design features, creating retaining walls that are as inspiring as they are functional.
