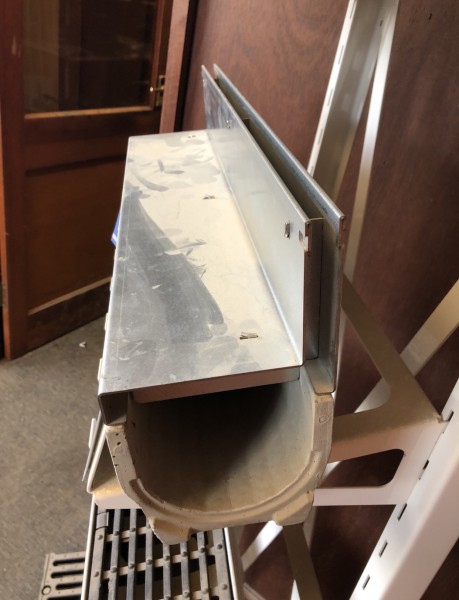

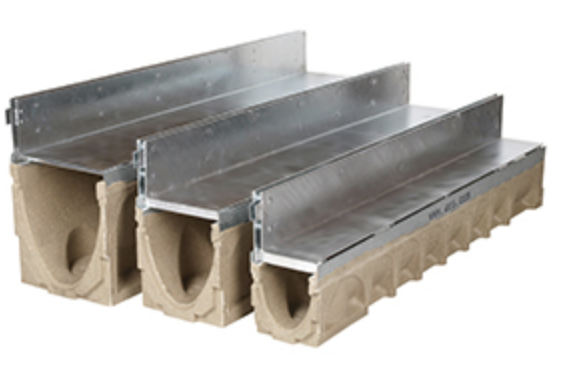

Galvanised Linear Slot Drain Channels

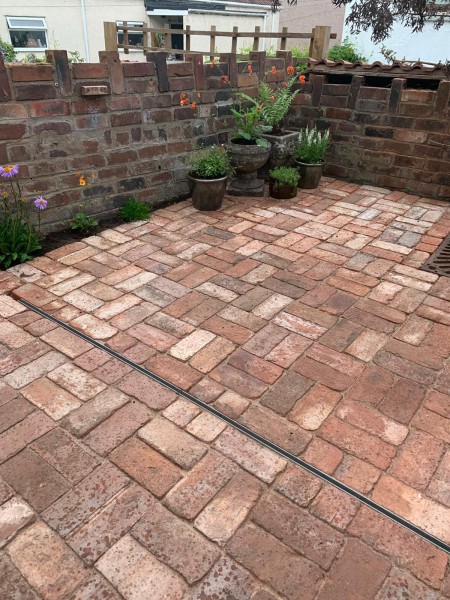

Galvanised Slot Drainage channels are primarily aimed at new house building and other domestic applications such as gardens and driveways, it is lightweight & extremely easy to use.

Available Sizes: Galvanised Slot Drains, complete unit Self Pave B125 1000mm base & Galvanised Slot Drain Top, complete unit Self Pave B125 500mm

Features:

• Discreet Surface Water Drainage System.

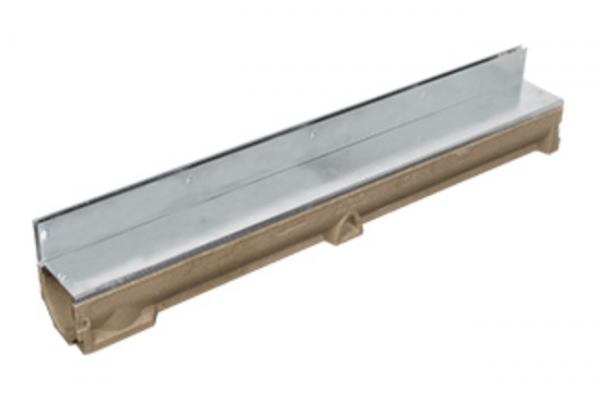

• Includes Base Unit, 1000mm long x 122mm wide x 121mm high, slot x 10mm wide.
• Slot section, 1000mm long x 122mm wide x 80mm high.
• Designed To Suit Blocks or Pavers up to 80mm.
• Offset Drainage Slot Provides A Discreet Threshold Drainage Solution.

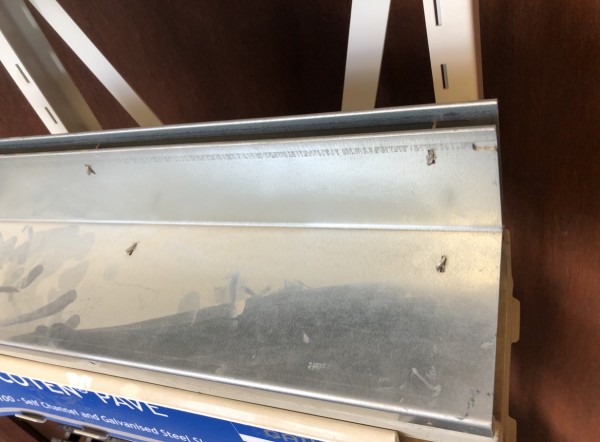

• Slotted Tops & Access Units Manufactured From Galvanised Steel.
• Lightweight And Easy To Move Drainage Channel, Primariy Aimed At New House Building And Other Domestic Applications Such As Drives & Gardens.
• Load Classes A15 to B125 When Tested In Accordance With EN1433.

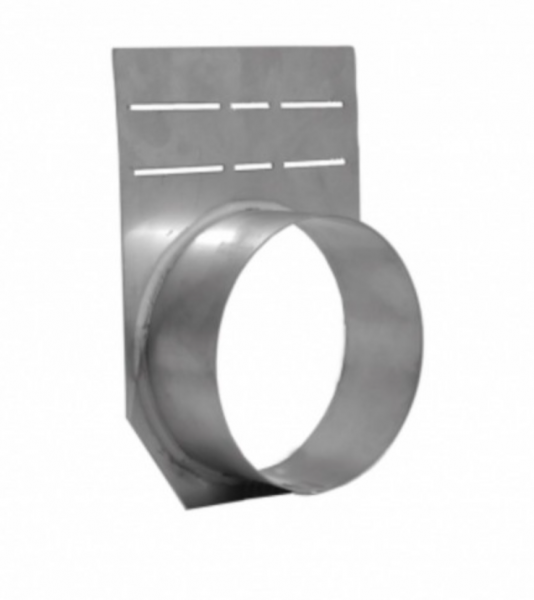

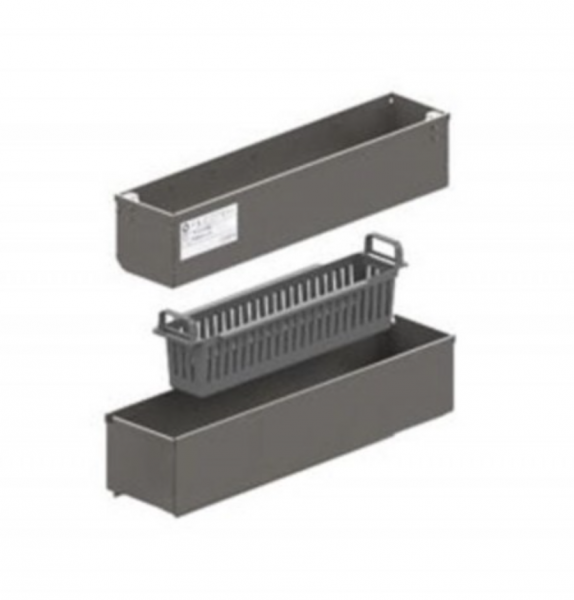

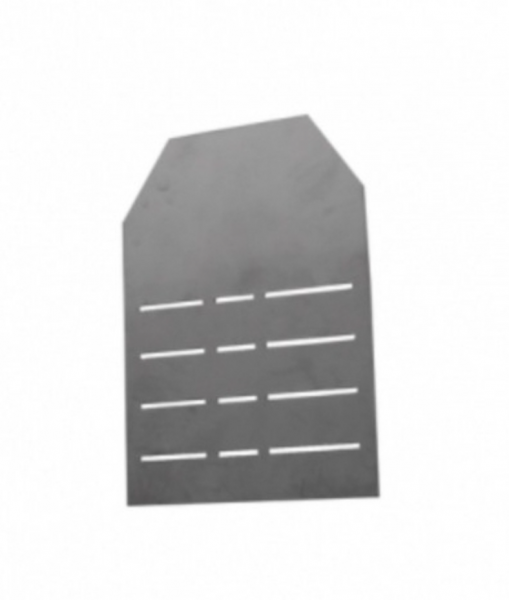

• Front/End Cap closed galvanised & Front /End Cap with outlet galvanised & Sump Unit B125 500mm with Galvanised Maintenance Unit. Sump unit includes base channel & pair of sump lifting keys)

Discounts available on bulk orders over 20 lengths, Stainless Steel options avaialble, Get In Touch With Us To Know More.
