Slimline Threshold Drain Channels & Accessories

Stylish domestic slimline threshold drain for domestic landscaping projects.

With it's discreet 65mm width available in 65mm & 100mm depths, this system is a smart and practical drainage solution for hard landscaping projects.

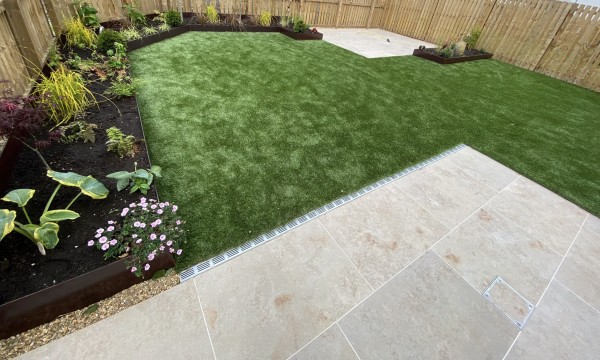

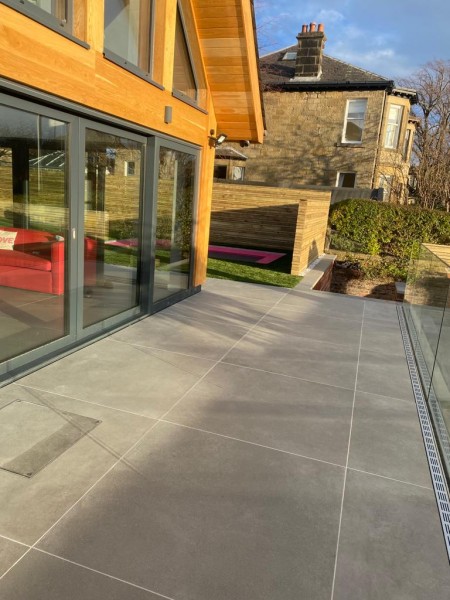

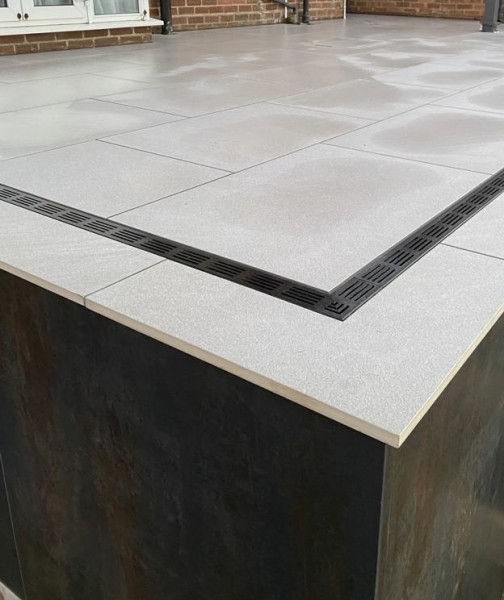

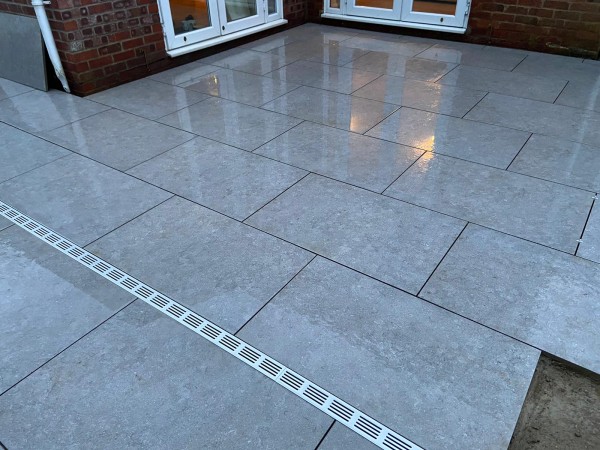

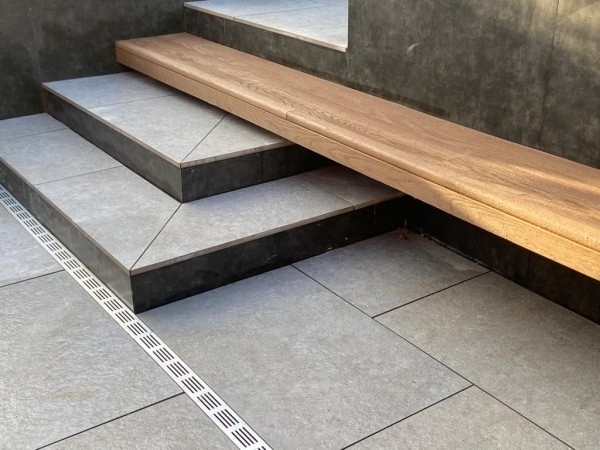

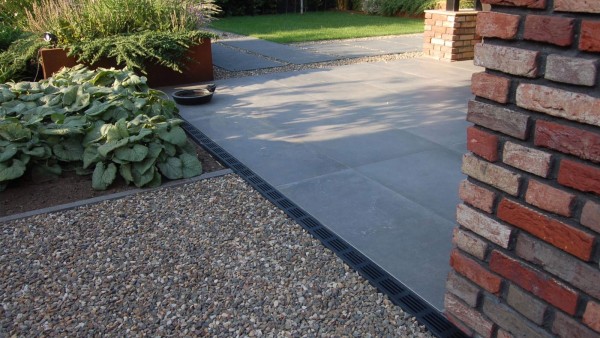

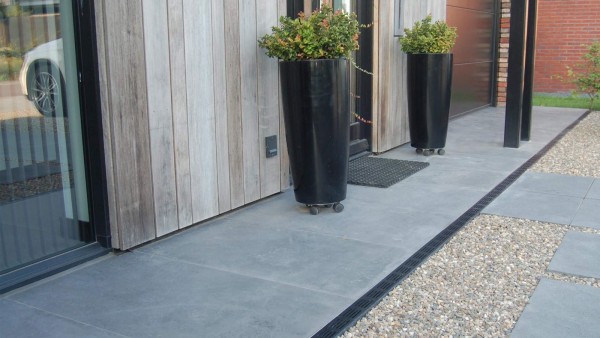

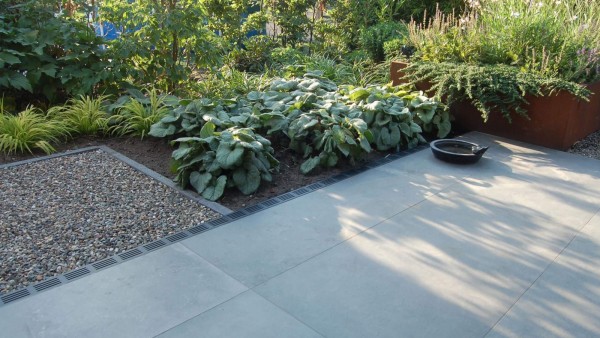

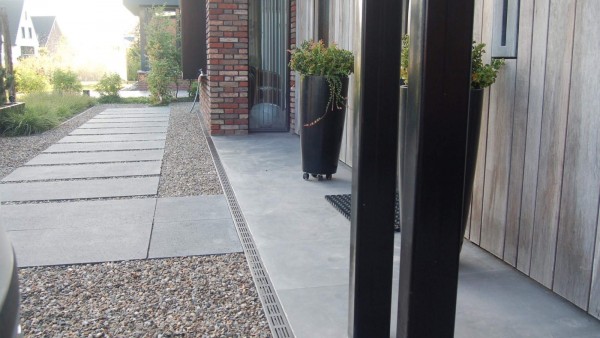

Suitable for patios, pathways, walkways, thresholds or block paving (NOT parking areas).

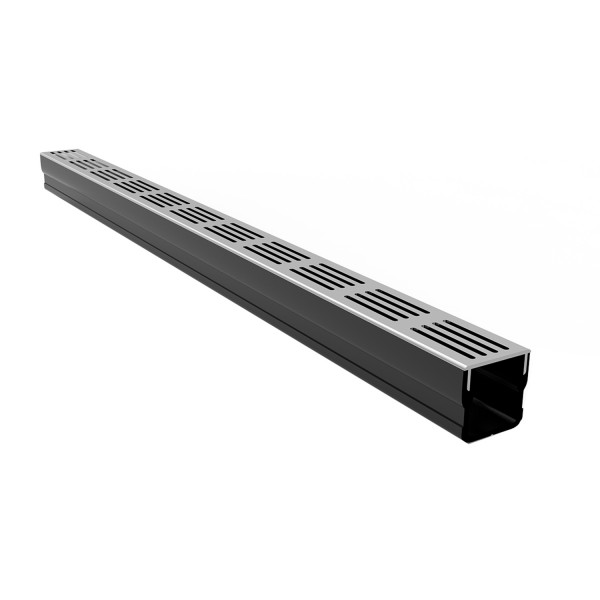

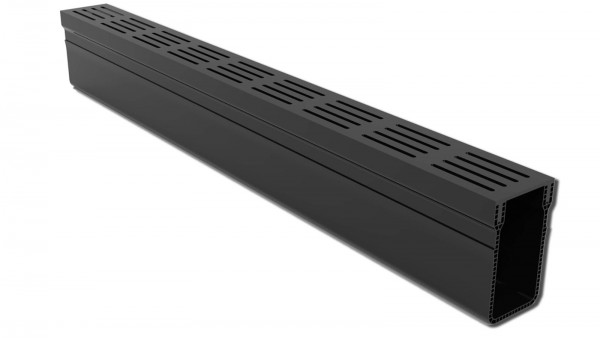

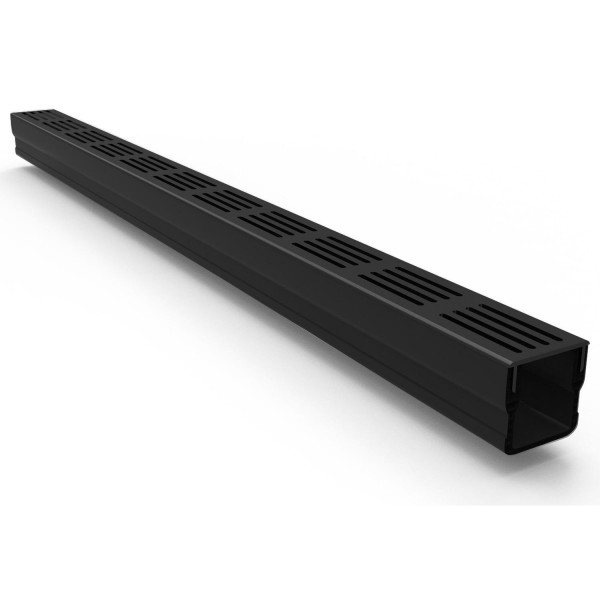

Slimline Threshold Dimensions and Details.

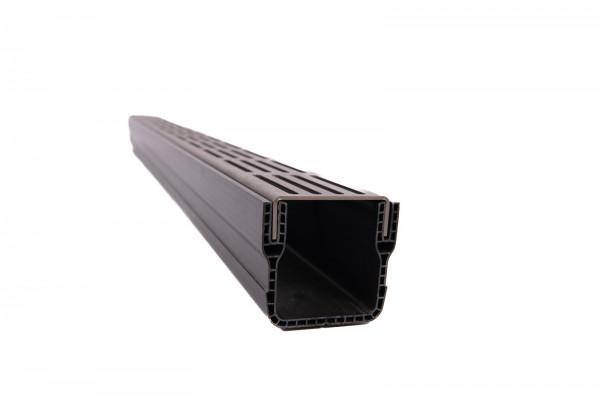

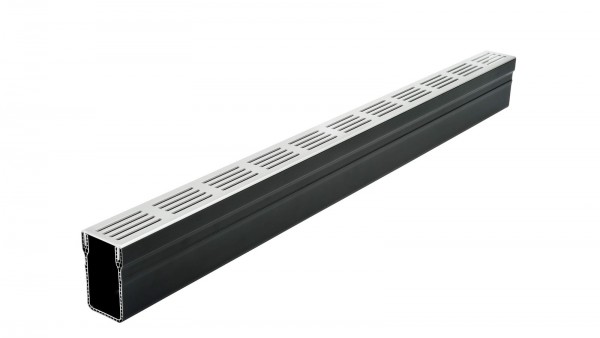

• Width: 65mm Wide, 100mm Depth, Length: 1000mm.
• Total Loading Weight: 1,750Kg.
• Loading Class: 15 kN.
• Material: EN AW6060 T66 EN573-3 NEN-ISO 10074 PVC (Polyvinyl chloride)

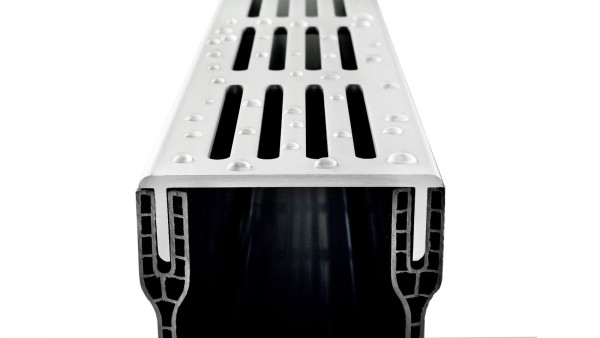

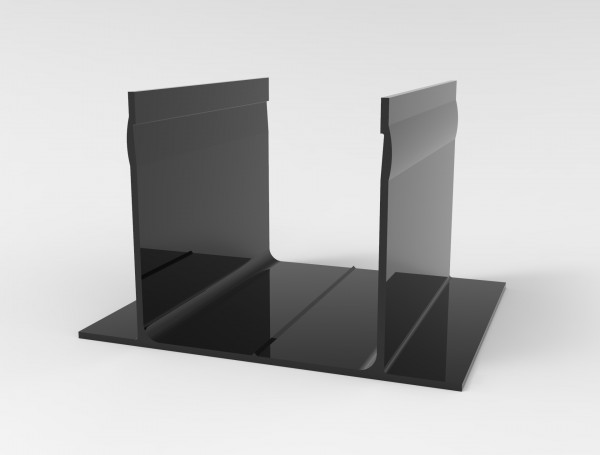

• Body: PVC extruded profile.
• Grating: anodized aluminium black & silver, mild steel 304/1.5mm guage & corten effect finish profiles..
• For internal or external use.

Shallow Threshold Dimensions and Details

• Width: 65mm Wide, 60mm Depth, Length: 1000mm.
• Total Loading Weight: 1,650kg
• Loading Class: 15 kN.
• Material: EN AW6060 T66 EN573-3 NEN-ISO 10074 PVC (Polyvinyl chloride)
• Body: PVC extruded profile.
• Grating: anodized aluminium black & silver profiles.

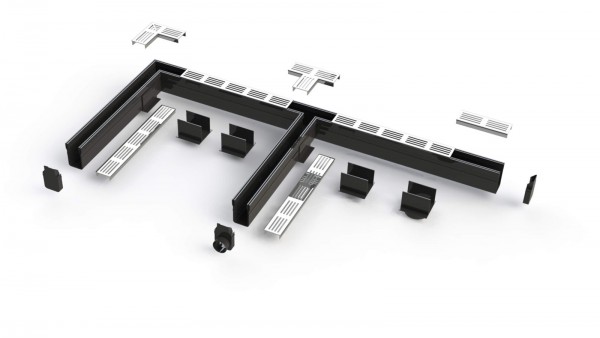

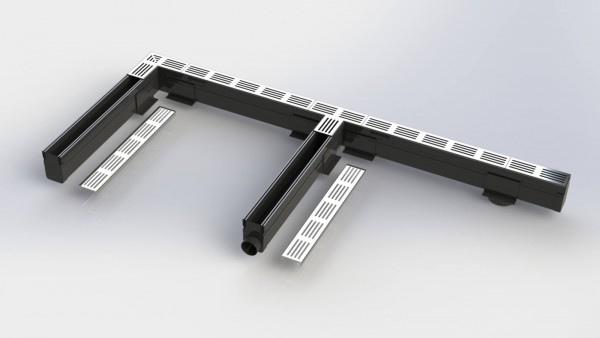

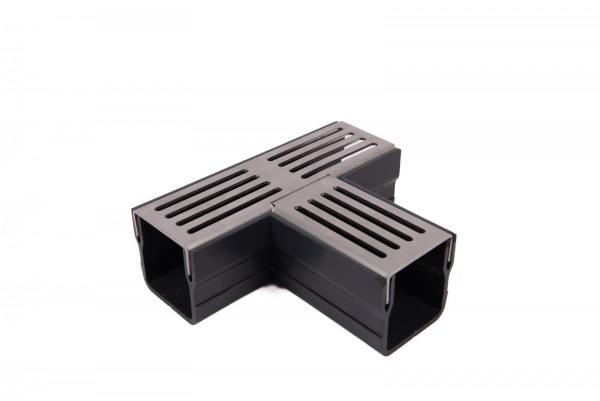

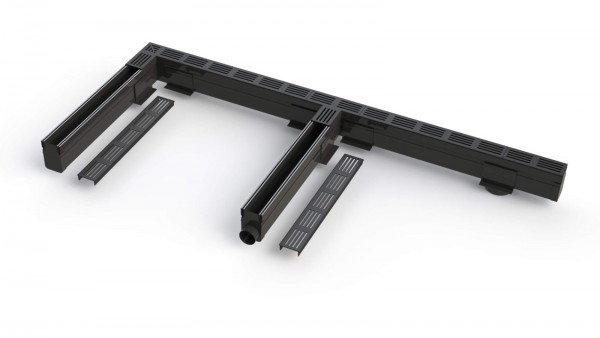

Threshold Drain Channel Accessories & Product Information.

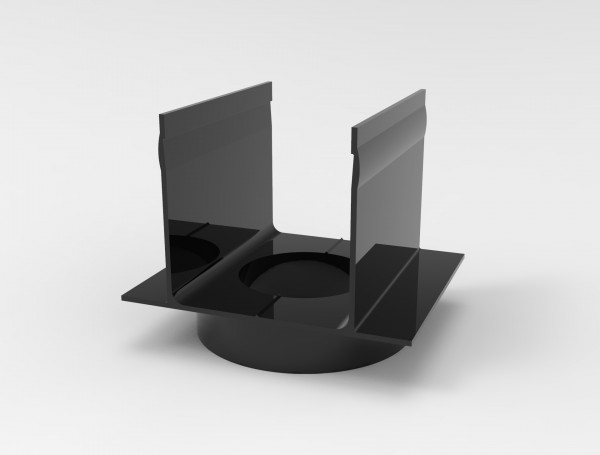

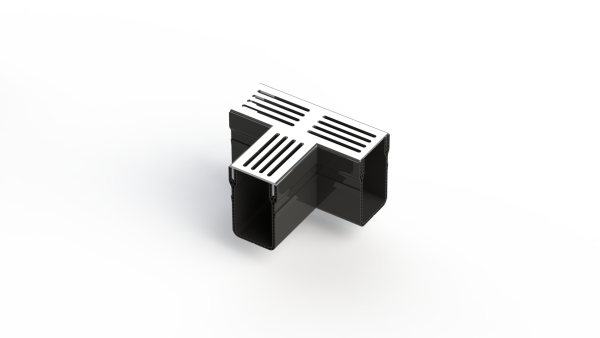

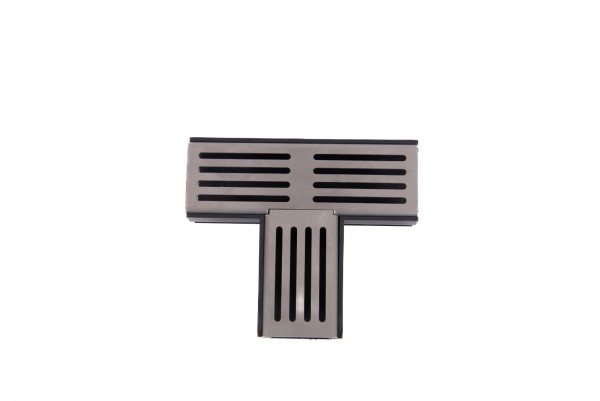

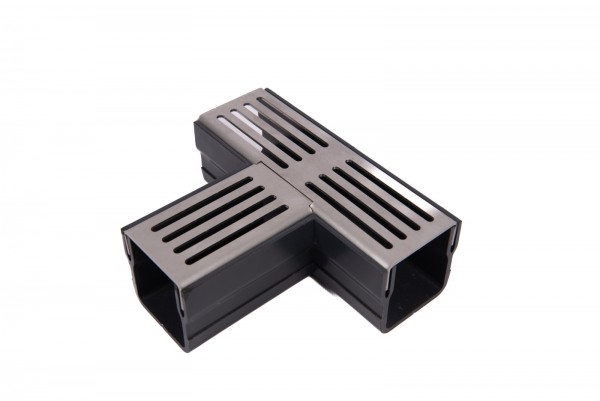

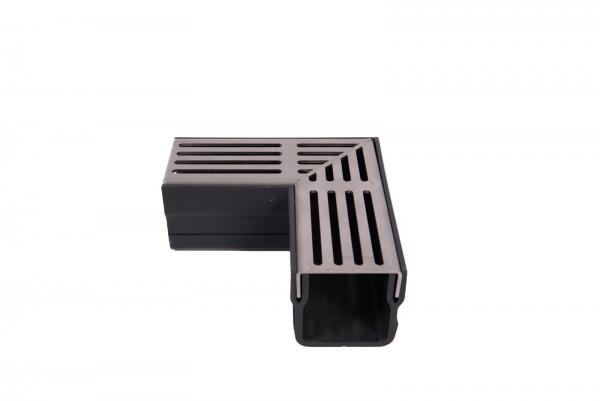

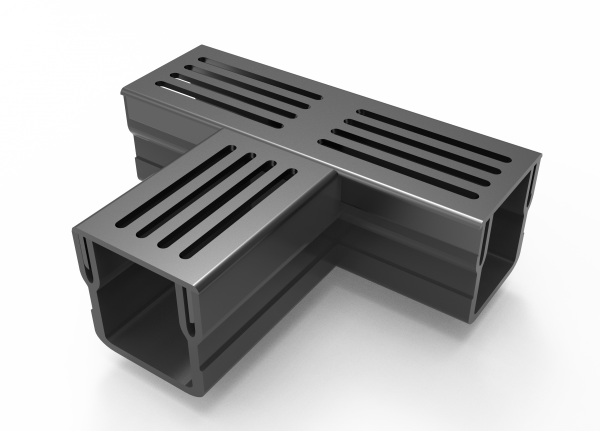

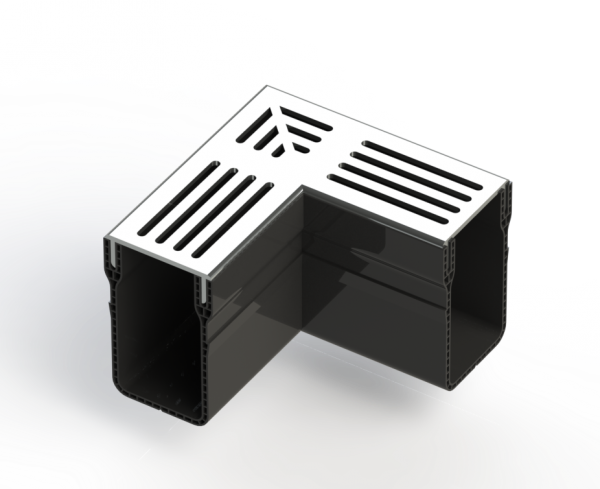

• Connectors/Joiners with vertical outlet - diameter 80mm suitable for discharge into 110mm diameter pipe. Please note you should ideally order 80-110mm adaptor piece along with the connector with vertical outlet from the drop down menu in order to be able to discharge into 110mm soil pipe.

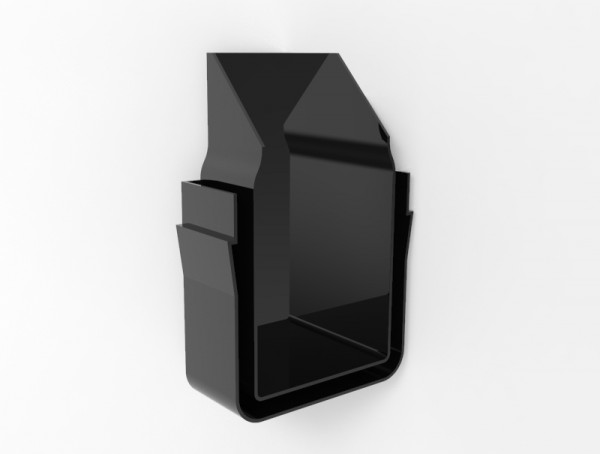

• End cap with outlet - diameter 50mm
• Sealed outlet end cap.

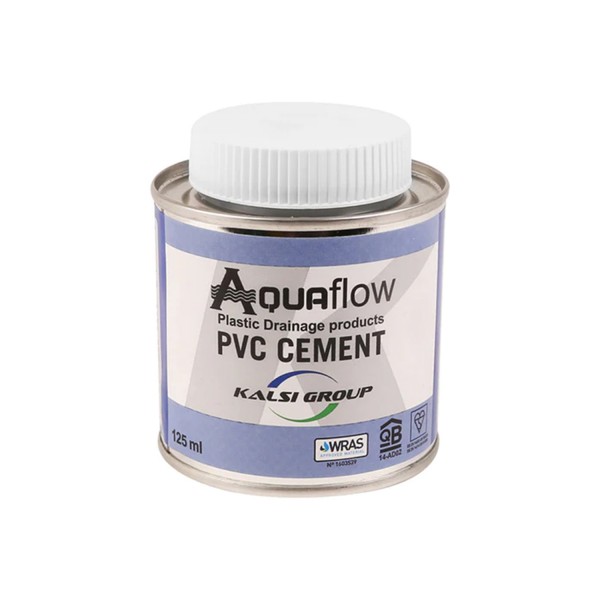

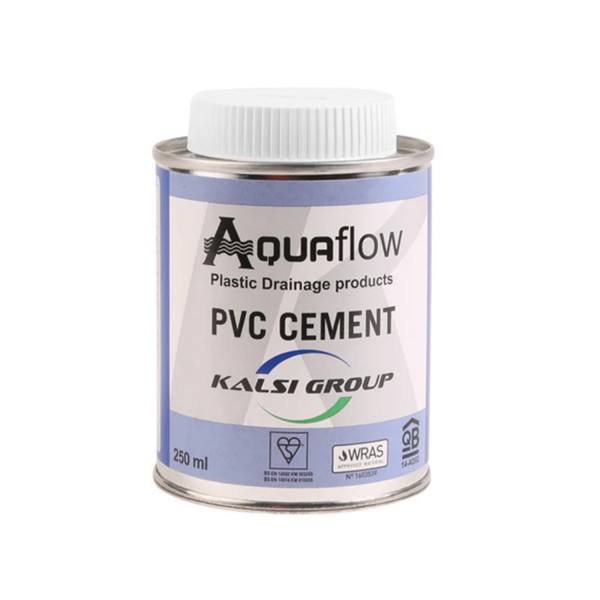

• PVC Cement in 125 & 250ml tins.
• Fully compliant and certified to load class A15 BS EN 1433:2002.
• Compliant with Part M of the Building Regulations for England and Wales (DOP certificate available on request)
• Normally available within 1-2 working days, subject to stock levels at the time of ordering.
• Quick and easy to install.
• Simple connection to standard underground drainage via 50mm outlets.
• Removable heel guard.
• Available in Black Powder Coated Aluminium, Silver Aluminium, Corten Steel and 304 Stainless Steel (3mm)
• Fully compliant and certified to load class A15 BS EN 1433:2002.
• Compliant with Part M of the Building Regulations for England and Wales (DOP certificate available on request)

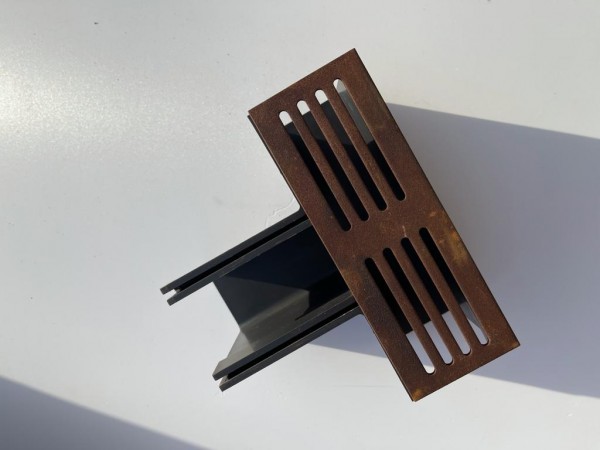

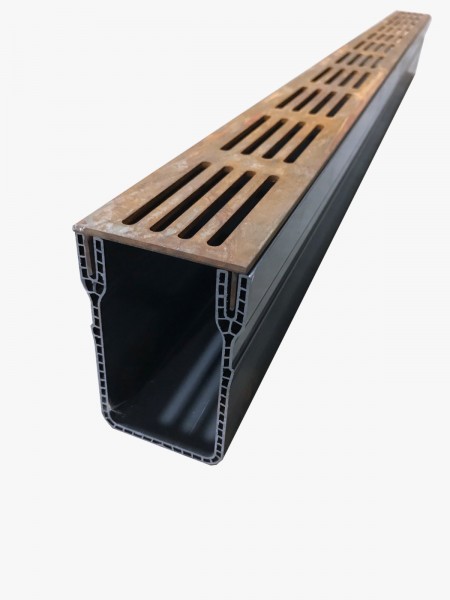

• Please note: The corten effect finish will rust one time only and will remain looking rusted. It needs to be installed 5mm lower than finished levels to allow rust to drain away.
