Grass Top Recessed Manhole Covers

GrassTop Recessed Manhole Cover

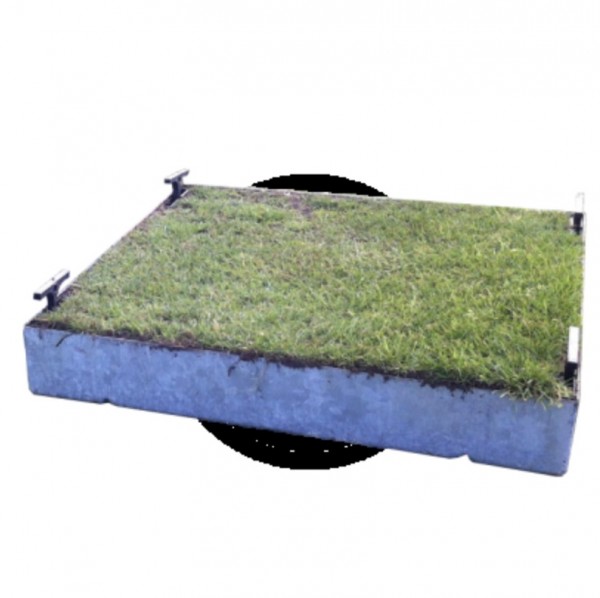

Another amazing product from your Landscape Industry Specialist. These recessed manhole covers are perfect for disguising ugly utilities in areas of soft landscaping. The obvious use is for manhole covers within lawns, but why not fill the recessed tray with mulch, rubber crumb, wildflower turf or similar?

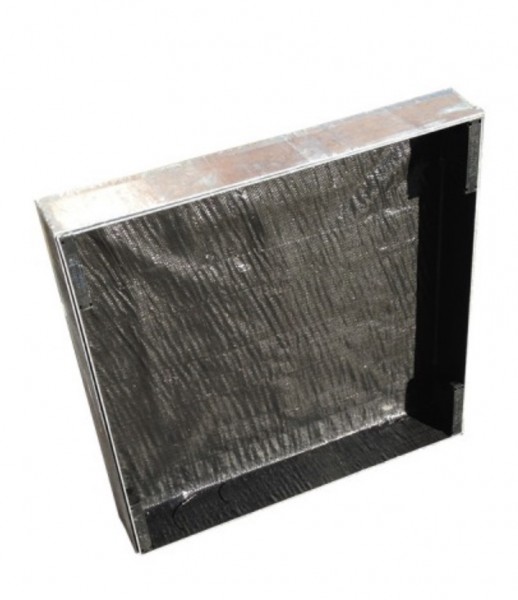

Suitable for areas with foot traffic or light vehicular traffic, these grass top recessed manhole covers are made from galvanised steel/Polypropylene and have pre-drilled drainage holes. An integral membrane prevents soil or small particles being washed through the holes.

Sizes available, please check all dimensions before ordering.

CD 300SR-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Plastic Frame.

• Clear Opening 220 to 300mm x 80mm
• External Dimensions 438mm x 438mm x 93mm

EG3030/100-GT - Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 300mm x 300mm x 100mm
• External Dimensions 406mm x 406mm x 106mm* (excl. 50mm lugs)

CD 450SR-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 450mm x 80mm
• External Dimensions 580mm x 580mm x 88mm

CD 790R/80-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 600mm x 450mm x 80mm
• External Dimensions 650mm x 500mm x 85mm

CD 790R/80/SF-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes,  Galvanised Steel Frame.

• Clear Opening 600mm x 450mm x 80mm
• External Dimensions 650mm x 500mm x 85mm

EG6045/100-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 600mm x 450mm x 100mm
• External Dimensions 706mm x 556mm x 106mm* (excl. 50mm lugs)

CD 791R-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 600mm x 600mm x 80mm
• External Dimensions 690mm x 690mm x 96mm

EG4545/100-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 450mm x 450mm x 100mm
• External Dimensions 556mm x 556mm x 106mm* (excl. 50mm lugs)

EG6060/100-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 600mm x 600mm x 100mm
• External Dimensions 706mm x 706mm x 106mm* (excl. 50mm lugs)

EG7560/100GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 750mm x 600mm x 100mm
• External Dimensions 856mm x 706mm x 106mm* (excl. 50mm lugs)

EG7575/100-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 750mm x 750mm x 100mm
• External Dimensions 856mm x 856mm x 106mm* (excl. 50mm lugs)

EG9060/100-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 900mm x 600mm x 100mm
• External Dimensions 1006mm x 706mm x 106mm* (excl. 50mm lugs)

EG9090/100-GT - Integral Keys, Factory Fitted Membranes & Drainage Holes, Galvanised Steel Frame.

• Clear Opening 900mm x 900mm x 100mm
• External Dimensions 1006mm x 1006mm x 106mm* (excl. 50mm lugs)

*Not including strengthening supports.
All made from driveway rated covers with a 10 ton gross loading.
Grass tops generally are not driven on, if you need a cover that is rated please do let us know.

Bespoke Sizes Available, Get In Touch For More Information.

Please note that these items are made to order. Depending upon current production loads, there can be a 1 to 2 working day addition to the shipping time you select in the checkout.

If you have difficulty clarifying what the clear opening size the best way to decide which cover is most suitable for you is by measuring the hole in the ground that is being covered.

Technical Data Bespoke Manhole Covers

We offer a made to order service for a vast range of manhole covers to meet your requirements: biomass, multi-part, decorative finishes, bespoke sizes, extra security, spring assisted and more. Bespoke manhole covers are non-returnable items as they are made to order.

Contractors must ensure that products are fit for purpose - if in doubt, please get in touch
