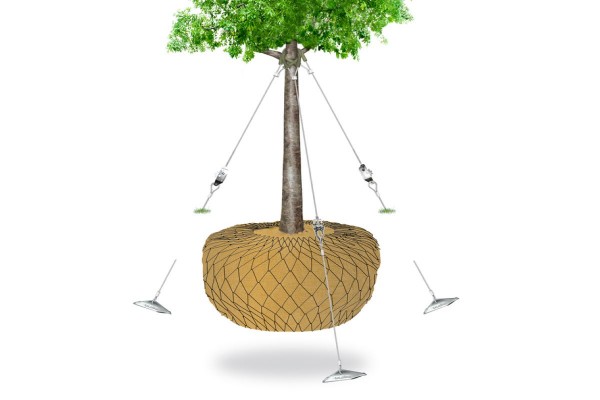

Platipus Guy Fixing System Kit ^TM

Platipus Guy Fixing System Kits are fast & easy to install. They offer effective support for trees in highly exposed areas and for trees which require correction against leaning.

Key benefits include:

• Ideal for exposed sites.
• Can be used on existing planted trees.
• Strong protective collars to protect tree form damage.
• Adjustable tensioners with ratchet shrouds for safety.

Available in 4 sizes:

• G1 suitable for tree heights 2.5 - 4.5m and 12 - 25cm girth. (x3 S41 anchors attached to ratchet tensioners, x3 collar, clip & wire assemblies (length 6m), x3 tensioner shrouds). Supplied 5 kits per box.
• G2 suitable for 4.5 - 7.5m & 25 - 45cm. (x3 S61 anchors attached to ratchet tensioners, x3 collar, clip & wire assemblies (length 8m), x3 tensioner shrouds). Supplied 5 kits per box.
• G3 suitable for 7.5 - 12m & 45 - 75cm. (x3 S81 anchors attached to ratchet tensioners, x3 collar, clip & wire assemblies (length 12m), x3 tensioner shrouds. Supplied 1 kit per box.
• G4 suitable for 12m plus & 75cm plus. (x3 B41 anchors attached to ratchet tensioners, x3 collar, clip & wire assemblies (length 12m), x3 tensioner shrouds. Supplied 1 kit per box.

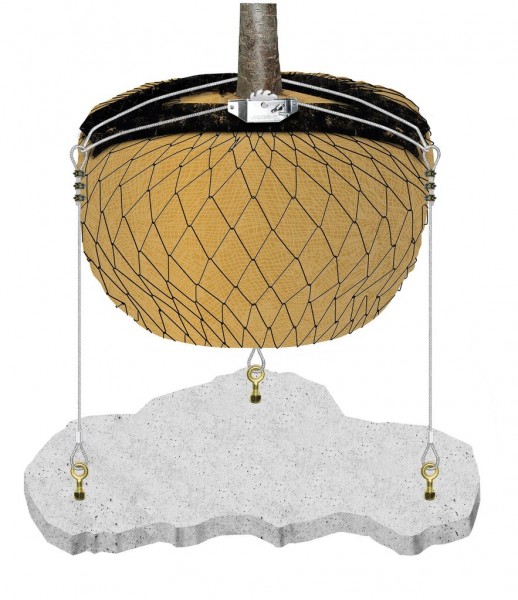

Tree Anchoring without Anchors

Installation Tools for Platipus Systems

• HDRS2 - Hand drive rod for RF0P kit.
• HDRS4 - Hand drive rod for RF1P, G1 & CG1 kits.
• PDRS4 22 x 108 - Power drive rod for RF1P, G1 & CG1 kits, 1.0m long with 22mm x 108mm shank.
• HDRS6 - Hand drive rod for RF2P, G2 & CG2 kits.
• PDRS6 22 X 108 Power drive rod for RF2P, G2 & CG2 kits, 1.5m long with 22mm x 108mm shank.
• HDRS8 - Hand drive rod for RF3p, RF4P & G3, G4 kits.
• PDRS8 32 x 160 - Power drive rod for RF3P, RF4P & G3, G4 kits, 1.8m long with 32mm x 160mm shank.
• RR1 - Rod removers suitable for all drive rods (pair).
• PH0 - Platipus hook & spanner for loadlocking & tensioning RF0P kit.
• PH1 - Platipus hook suitable for loadlocking RF1P, RF2P & G1, G2 kits.
• SJ1 - Stressing jack suitable for loadlocking RF3P, RF4P & G3, G4 kits.
• PHK - Plati-klein for loadlocking CG1, CG2 kits.
