Living roof systems EdgeGuard.
Light weight, aluminium construction is attractive and practical. Easy to apply. Designed for use in a variety of green or ballasted roof applications.
EdgeGuard can be used either as an edge restraint, or where a solution for retaining or separating the roof garden materials is required.
Supplied in 2.4M lengths, quick installation.
Available in a range of heights to suit various green roof buildups.
Lightweight and robust, can be cut to any length.
Available powder coated in any colour at extra cost, get in touch right here to know more. [email protected]
Unique connection system.
Can be angled to suit the roof design.

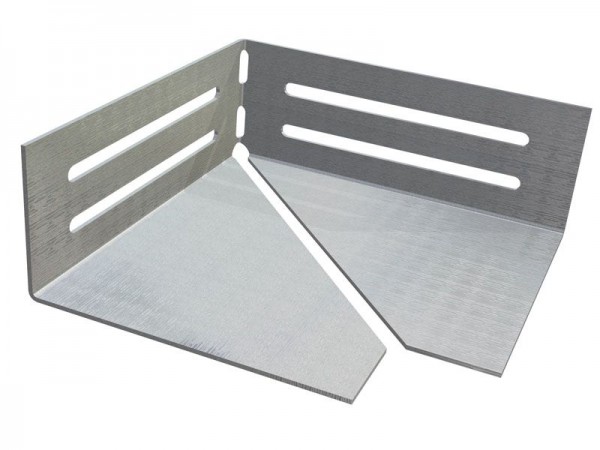

Specially designed connectors and corner plates also available to join together lengths of trim.

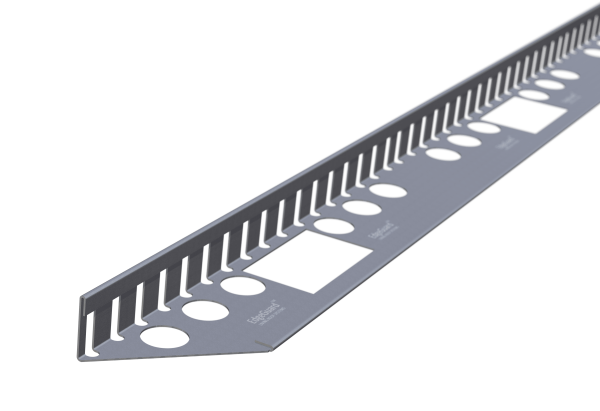

Sizes Available Straight:

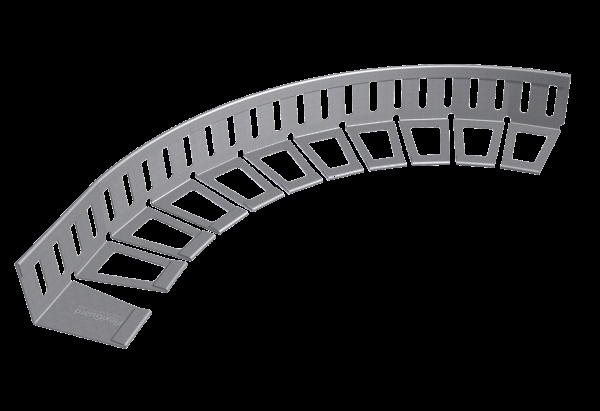

Sizes Available Curved:
- EG-A-50/2400 50 x 100 x 1.5mm (Height x Width of Base x Material Thickness)
- EG-A-75/2400 75 x 100 x 1.5mm
- EG-A-100/2400 100 x 100 x 1.5mm
- EG-A-120/2400 120 x 100 x1.5mm
- EG-A-150/2400 150 x 150 x 1.5mm
- EG-A-200/2400 200 x 150 x 2.0mm
- EG-A-250/2400 250 x 200 x 2.0mm
- EG-A-300/2400 300 x 200 x 2.0mm
- EG-F-50/2400 50 x 100 x 1.5mm (Height x Width of Base x Material Thickness)
- EG-F-75/2400 75 x 100 x 1.5mm
- EG-F-100/2400 100 x 100 x 1.5mm
- EG-F-120/2400 120 x 100 x 1.5mm
- EG-F-150/2400 150 x 150 x 1.5mm
- EG-F-200/2400 200 x 150 x 2.0mm
- EG-F-250/2400 250 x 200 x 2.0mm
- EF-F-300/2400 300 x 200 x 2.0mm
- EG-S-50 45 x 95 x 250mm (Height x Width of Base x Length of Section)
- EG-S-75 70 x 95 x 250mm
- EG-S-100 95 x 95 x 250mm
- EG-S-120 115 x 95 x 250mm
- EG-S-150 145 x 145 x 350mm
- EG-S-200 195 x 145 x 350mm
- EG-S-250 245 x 195 x 350mm
- EG-S-300 295 x 195 x 350mm
Contractors must ensure that products are fit for purpose - if in doubt, please get in touch
- EG-C-50 45 x 95 x 250mm (Height x Width of Base x Length of Section)
- EG-C-75 70 x 95 x 250mm
- EG-C-100 95 x 95 x 250mm
- EG-C-120 115 x 95 x 250mm
- EG-C-150 145 x 145 x 350mm
- EC-G-200 195 x 145 x 350mm
- EC-G-250 245 x 195 x 350mm
- EC-G-300 295 x 195 x 350mm
Please note delivery prices are as accurate as possible at time of ordering, however this cost may be subject to change at any time due to weight/volume, fuel surcharges, currency changes and location.
Please let us know about any access restrictions at the delivery/check-out stage as failure to provide information may delay your order or incur extra delivery costs.
The administration team will contact you should any issue arise concerning delivery charges. Contact Arbour Landscape Solutions for more information. [email protected]
All materials are subject to availability at the time of order. The administration team will be in touch to arrange/advise of your delivery date.
